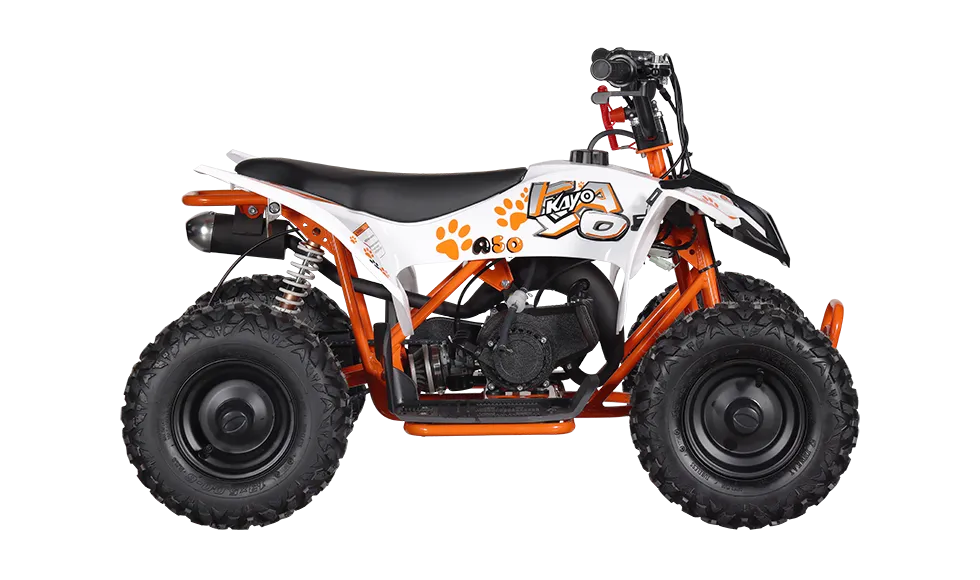

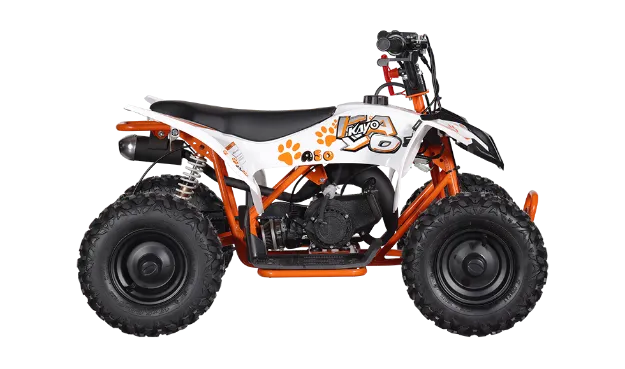

A50

Features:

Power

For Eager Riders

Start smart and easy with the managed power of a Fully Automatic Transmission and 2-Stroke, Pull-Start Engine that we make in-house.

Safety

Build Confidence

Practice balancing, turning, and stopping with the Throttle Speed Limiter, durable Traction Tires, and responsive Disc Brakes.

Design

Tiny Frame, Big Strength

Have confidence in a high-quality steel frame that we make in-house.

Remember: Always wear proper clothing and a helmet. Mistakes are expected from growing riders, but the fun of ATVs is all about getting up, wiping off the dirt, and keeping riding. And your A50 is ready to do the same.

Specifications:

• Power
• Engine2-Stroke, SOHC, Air Cooled
• Displacement49.0 cc
• Bore x Stroke40.0 x 59.7 mm
• Compression Ratio7.6:1
• Fuel SystemCarburetor
• Maximum Power1.37 kw @ 6500 rpm
• Maximum Torque2.0 N⋅ m @ 5000 rpm
• IgnitionCDI
• Starting Method Pull Start
• TransmissionFully Automatic
• Final Drive2WD, Chain
• Performance
• Front Suspensionn/a
• Rear Suspension200 mm
• TiresF/6" R/6"
• Front BrakesDisc Brake
• Rear BrakesDisc Brake
• Dimensions
• Length x Width x Height1030 x 580 x 660 mm
• Seat Height485 mm
• Ground Clearance140 mm
• Wheelbase710 mm
• Dry Weight36.5 kg
• Fuel Capacity2.0 L
