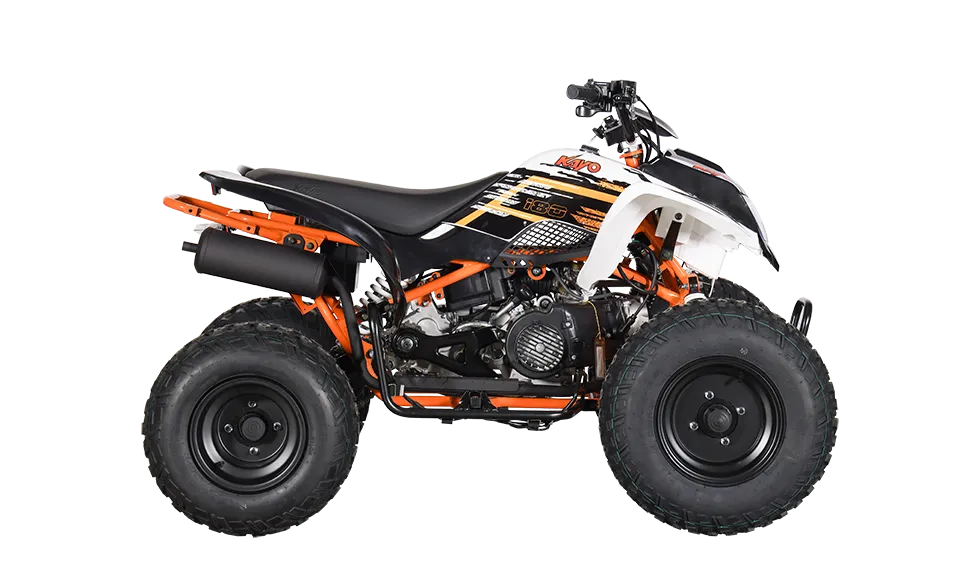

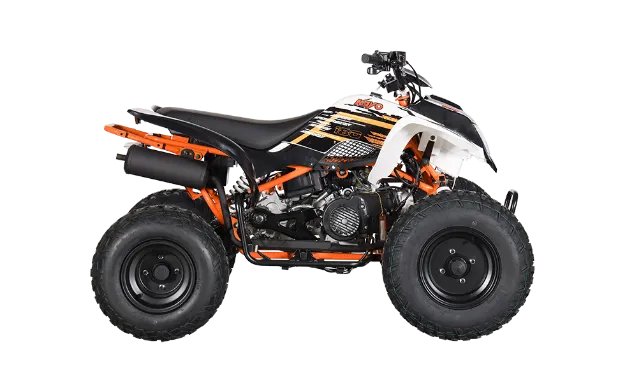

KAYO A180

Design

For In-Between Riders

Too experienced for a small ATV, but not ready for something too big? Choose the A180, an ATV that fits the inbetweeners. Dynamic yet manageable power is paired with a rugged frame ready for adventure.

Performance

Real Off-Road Suspension

Get ready to climb over anything with Double A-Arm front shock absorbers complimenting the front 10" rims.

Power

Ready to Ride

Focus on the thrills ahead with a reliable 4-Stroke Air Cooled Engine and the simple Automatic CVT with R-N-F gears.

For those looking for an ATV of a different size, go off-roading with the fun, easy-to-use A180.

• Power
• Engine 4-Stroke, SOHC, Air Cooled
• Displacement 177.3 cc
• Bore x Stroke 62.5 x 57.8 mm
• Compression Ratio10.0:1
• Fuel System Carburetor
• Maximum Power 7.35 kw @ 7500 rpm
• Maximum Torque10.0 N⋅ m @ 6000 rpm
• Ignition CDI
• Starting Method Electric
• Transmission CVT with R-N-F
• Final Drive 2WD, Chain
• Performance
• Front Suspension 310 mm Non-Adjustable
• Rear Suspension 280 mm Adjustable
• Tires F/10" R/9"
• Front Brakes Hydraulic Disc Brake
• Rear Brakes Hydraulic Disc Brake
• Dimensions
• Length x Width x Height 1570 x 1020 x 1030 mm
• Seat Height 760 mm
• Ground Clearance 150 mm
• Wheelbase 1120 mm
• Dry Weight 145.0 kg
• Fuel Capacity 5.5 L
